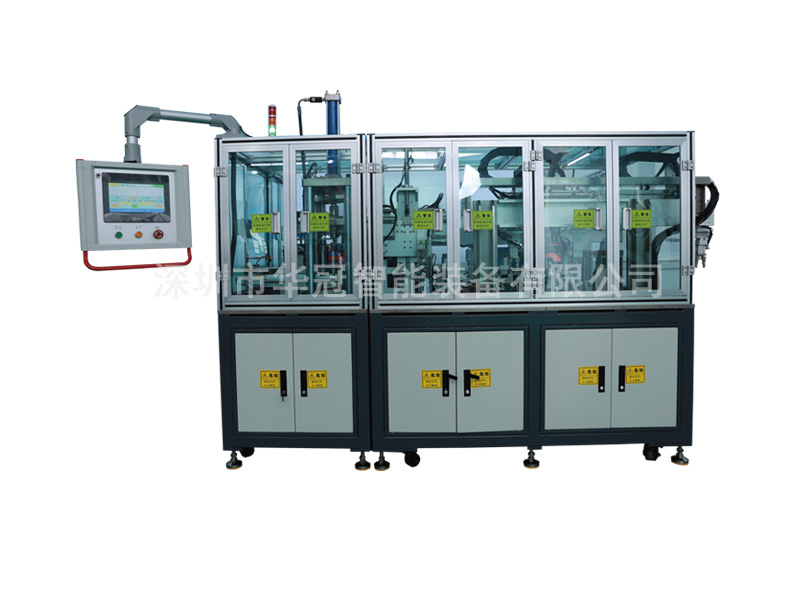

Main technical parameters:
Low: chip diameter Φ 23 ~ Φ 60 mm
Chip stack height: 12~60mm
Shaft diameter: low Φ 5 ~ 12 mm Φ
Shaft length: 80~200mm
Pressure mounting dimension accuracy: ±0.10mm
Pressure installation Angle accuracy: ±1°
Air source: 0.5^0.7MPa
Power supply: 380VAC/50Hz
Machine power: 2KW
Special specifications can be customized
Service hotline： 0755-23468502 / 27155162
Functions and Features
The shaft and commutator are equipped with servo electric cylinder
Chip incoming material for plastic basin, neat incoming material, electromagnet from the plastic basin to draw
Shaft branch adopts hopper dressing, automatic horizontal push out
The end plate adopts vibration plate for automatic feeding
Commutator feeding using XY two axis manipulator, with Z axis elevator, in order to go coordinate points from the suction disc grab
Slot paper machine with track can be connected
The model can be changed quickly
